Louvered Pergola vs Retractable Roof: Which One Is Right for Your Project?
Published August 24, 2026 · Updated August 27, 2026 · By AluShed Team · 10 min read
When planning an outdoor shading project, the two most popular motorized systems are the louvered pergola (also called a bioclimatic pergola) and the retractable roof (PVC folding roof or sliding roof). Both offer motorized operation, rain protection, and UV control — but they work in fundamentally different ways and suit different project types.
In this guide, we compare the two systems head-to-head across six critical factors: sun control, rain protection, wind resistance, cost, lifespan, and ideal use cases. By the end, you'll know exactly which one fits your patio, restaurant, or commercial project.
📑 Table of Contents
1. What Is a Louvered Pergola?
A louvered pergola is an aluminum-framed structure with a roof made of horizontally rotating blades (louvers). A tubular motor drives a linkage that rotates all blades simultaneously from 0° (fully open) to 135° (fully closed and waterproof). The frame is always present — only the blade angle changes.
When open, the blades are vertical, allowing approximately 90% sunlight and full airflow. When closed, the overlapping blades create a rigid, 100% waterproof roof with an integrated gutter system that channels rainwater through the posts. Intermediate angles let you fine-tune sunlight and shade throughout the day.
Key advantages:
- ✅ Adjustable shade — any angle from full sun to full shade, not just open/closed
- ✅ Rigid aluminum roof — no fabric to sag, tear, or replace
- ✅ Modern architectural look — clean lines, premium feel
- ✅ High wind resistance — 100–120 km/h depending on series
- ✅ Low maintenance — annual hose-down, no fabric care
Limitations:
- ❌ The roof frame is always visible — cannot be fully "opened to the sky"
- ❌ Maximum single span is 4–6m depending on series
- ❌ Slightly less light transmission than a fully retracted roof
→ View AluShed Motorized Louvered Pergola →
2. What Is a Retractable Roof?
A retractable roof — also called a folding roof, sliding roof, or PVC retractable roof — uses a series of overlapping roof panels (typically PVC-coated polyester fabric or polycarbonate) that physically fold or slide open along tracks. When fully open, the roof retracts to one end, leaving the area completely open to the sky. When closed, it provides full rain and sun coverage.
There are two main types: PVC folding roofs (fabric panels that accordion-fold) and sliding glass/polycarbonate roofs (rigid panels that slide on rails). PVC folding roofs are the most common and cost-effective for commercial terraces and pool areas.
Key advantages:
- ✅ Fully open to the sky — no roof structure visible when retracted
- ✅ Large span capability — up to 10–15m wide in a single bay
- ✅ Maximum light when open — 100% unobstructed sunlight
- ✅ Ideal for large areas — restaurants, event spaces, pool covers
Limitations:
- ❌ Binary operation — only open or closed, no intermediate shade adjustment
- ❌ Fabric lifespan — PVC fabric typically lasts 8–12 years before needing replacement
- ❌ Lower wind resistance — must be retracted in high winds (typically above 50–60 km/h)
- ❌ Higher cost — 20–40% more expensive than a louvered pergola for similar size
- ❌ More maintenance — fabric cleaning, track lubrication, tension checks
→ View AluShed PVC Folding Retractable Roof →
3. Side-by-Side Comparison
| Factor | Louvered Pergola | Retractable Roof |
|---|---|---|
| Sun Control | Adjustable 0–135° (any shade level) | Open or closed only |
| Rain Protection | 100% waterproof (rigid aluminum + gutters) | 100% waterproof when closed (PVC/polycarbonate) |
| Wind Resistance | 100–120 km/h (can stay open) | Must retract above 50–60 km/h |
| Open-to-Sky | ~90% (frame remains) | 100% (fully retracted) |
| Max Span | 4–6m per bay | 10–15m per bay |
| Roof Material | Aluminum blades (lifespan 15+ years) | PVC fabric (8–12 years) / polycarbonate (15+ years) |
| Starting Price (3×3m) | ~$1,200 | ~$1,800 |
| Maintenance | Very low (annual wash) | Moderate (fabric care + track cleaning) |
| Best For | Patios, villas, restaurants, high-wind areas | Large terraces, pools, event spaces, open-sky preference |
| Certifications | CE, RoHS, ISO9001 | |
3.5 Price Breakdown by Size & Project Type
Price is often the deciding factor between these two systems. Below is a detailed breakdown of factory-direct FOB prices (excluding shipping, installation, and local taxes) for common sizes. Retail prices in your local market will typically be 2–3x these figures.
| Size | Louvered Pergola (FOB) | Retractable PVC Roof (FOB) | Price Difference |
|---|---|---|---|
| 3×3m (10×10ft) Small patio, bistro table | $1,200–$1,800 | $1,800–$2,500 | +$600–$700 |
| 4×4m (13×13ft) Medium patio, dining set | $1,800–$2,600 | $2,800–$3,800 | +$1,000–$1,200 |
| 5×5m (16×16ft) Large patio, lounge area | $2,500–$3,500 | $4,000–$5,500 | +$1,500–$2,000 |
| 6×4m (20×13ft) Restaurant terrace (1 bay) | $3,200–$4,500 | $5,000–$7,000 | +$1,800–$2,500 |
| 10×6m (33×20ft) Large commercial terrace | $6,500–$9,000 (2 bays) | $8,000–$12,000 | +$1,500–$3,000 |
| 15×8m (50×26ft) Pool cover / event space | $12,000–$18,000 (4 bays) | $14,000–$22,000 | Comparable |
Additional costs to factor in:
- Shipping: $300–$1,500 depending on destination (a 40HQ container fits ~8–12 standard pergolas)
- Installation: 15–25% of product cost (2–3 people, 1–2 days for standard sizes)
- Optional extras: LED lighting (+$150–$400), wind/rain sensors (+$80–$200), side zip screens (+$500–$1,200 per side), smart home integration (+$100–$300)
- Maintenance (annual): Louvered ~$50/year; Retractable ~$150–$300/year (fabric care + track lubrication)
3.6 Best Use Case Scenarios
Beyond size and budget, your location and use case heavily influence which system performs better. Here's how they compare across three common scenarios:
| Factor | 🏠 Residential Patio | 🍽️ Commercial Terrace | 🌊 Coastal / High-Wind |
|---|---|---|---|
| Best System | Louvered Pergola | Depends on size | Louvered Pergola |
| Why | Adjustable shade throughout the day, low maintenance, premium look | <8m: louvered; >8m: retractable for wide spans | Aluminum handles salt air; stays open in 100+ km/h wind |
| Wind Concern | Low–Medium | Medium (urban sheltered) | High — retractable must retract in 50+ km/h |
| Rain Performance | Both excellent | Both excellent | Louvered better (rigid seal in wind-driven rain) |
| Maintenance | Louvered: very low | Retractable: monthly track cleaning | Louvered: rinse salt off monthly |
| ROI / Lifespan | 15–25 years (aluminum) | Louvered: 15+ yrs; Retractable: replace fabric at 8–12 yrs | Louvered: 15+ yrs with marine-grade coating |
| Typical Budget | $1,500–$4,000 | $5,000–$20,000+ | $2,000–$6,000 (marine upgrade +$300) |
3.7 AluShed Product Series Comparison
If you've decided a louvered pergola is right for your project, AluShed offers two core series designed for different needs. Here's how they compare:
| Specification | AluS180 Light Series | AluS220 Heavy Series |
|---|---|---|
| Aluminum Profile | 6063-T5, 1.8mm wall | 6063-T5, 2.2mm wall |
| Louver Width | 180mm blades | 220mm blades |
| Max Single Span | 4.5m × 4.5m | 6.0m × 6.0m |
| Wind Resistance | Grade 8 (62–74 km/h) | Grade 10 (89–102 km/h) |
| Snow Load | ~15cm | ~30cm |
| Motor | Dooya 30Nm tubular | Somfy 50Nm tubular (upgrade available) |
| Weight (3×3m) | ~85 kg | ~120 kg |
| Starting Price (3×3m) | ~$1,200 | ~$1,800 |
| Best For | Residential patios, villas, mild climates | Commercial, coastal, high-wind, snow regions |
| Certifications | CE, RoHS, SGS, ISO9001 (both series) | |
Which AluShed series should you choose?
- AluS180 Light — Best for homeowners, small patios, and regions with mild weather. Excellent value, easy DIY installation possible.
- AluS220 Heavy — Best for restaurants, hotels, coastal properties, and any area with strong winds or heavy snow. The 2.2mm profile and wider blades provide superior structural rigidity and a more substantial premium feel.
- For distributors: We recommend stocking both series — AluS180 for price-sensitive residential customers and AluS220 for commercial and high-end residential projects. Ask about our distributor pricing →
4. Which One Should You Choose?
🏆 Choose a Louvered Pergola If…
- You want adjustable shade throughout the day
- Your area is under 6m wide
- You live in a high-wind or coastal area
- You prefer low maintenance and long lifespan
- You want a modern, premium architectural look
- Budget is moderate ($1,200–$3,000 for standard sizes)
🏆 Choose a Retractable Roof If…
- You want 100% open sky when retracted
- Your area is over 6m wide (large commercial terrace)
- You need to cover a pool or large event space
- Wind is not a major concern (sheltered location)
- You don't mind higher cost and more maintenance
- Budget is higher ($1,800–$5,000+ for standard sizes)
Quick decision rule: If your project is a residential patio, villa garden, or small-to-medium restaurant terrace, the louvered pergola is almost always the better choice — it costs less, handles wind better, and requires almost no maintenance. If you need to cover a very large space (10m+) or prioritize an unobstructed sky view, go for the retractable roof.

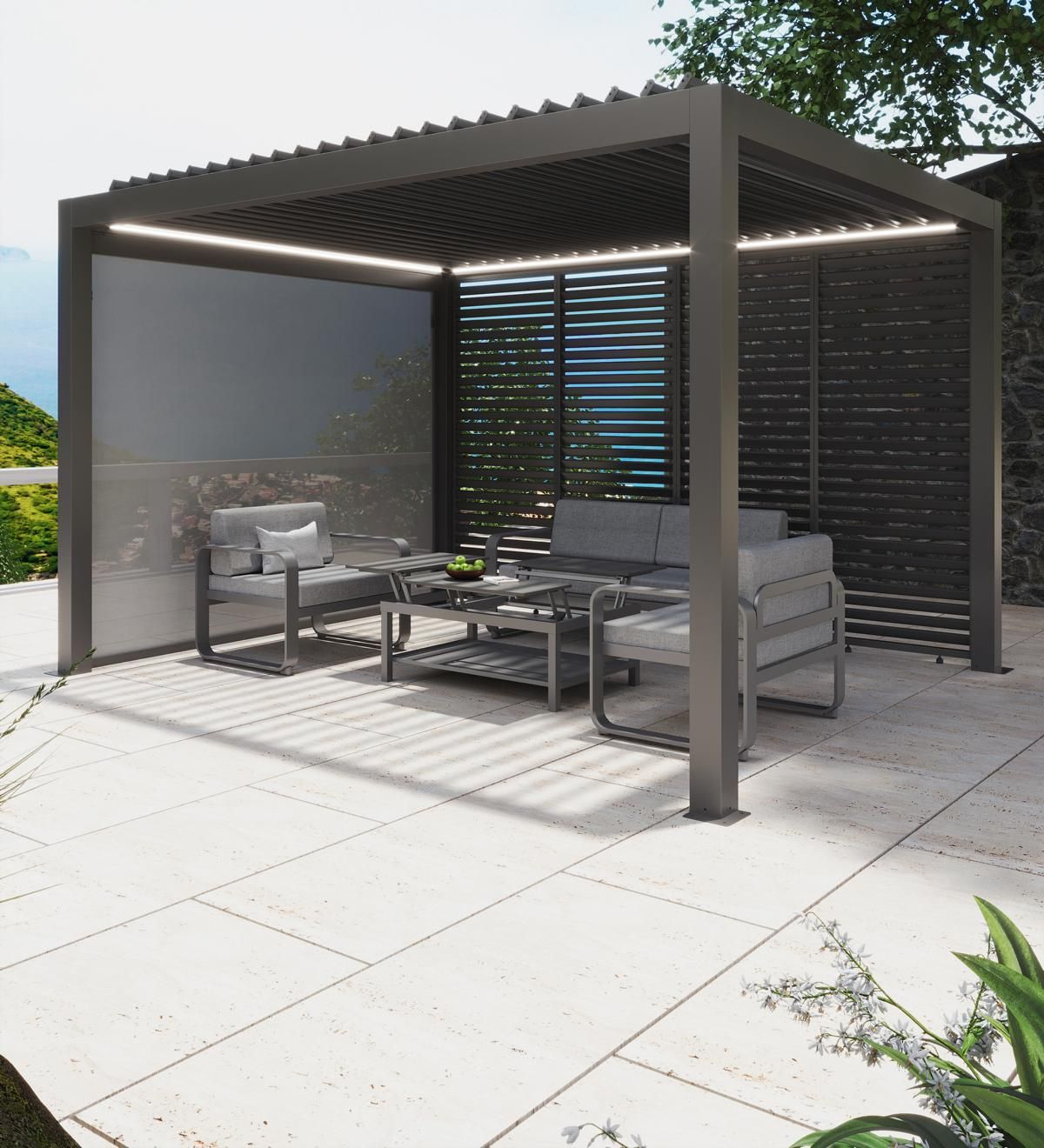

5. Can You Combine Both Systems?
Yes — and many high-end commercial projects do exactly that. A common combination is:
- Louvered pergola over the dining/lounge area (adjustable shade for guest comfort)
- Retractable roof over a larger adjacent event space or pool deck (full coverage when needed, open sky when desired)
Both systems can be controlled from the same smart-home hub or app, and can be color-matched for a cohesive look. However, for most residential and small commercial projects, choosing one system is more cost-effective. Combining both only makes sense when you have distinct zones with different shading needs.
AluShed manufactures both systems and can provide a combined quotation with matched colors and unified control. Contact us for a custom layout recommendation.
6. Frequently Asked Questions
Which is better: a louvered pergola or a retractable roof?
It depends on your needs. A louvered pergola offers adjustable sun control (0–135° rotation), full waterproofing when closed, and a modern architectural look — ideal for patios, villas, and restaurants. A retractable roof opens and closes completely, maximizing sunlight when open and providing full coverage when closed — ideal for large commercial terraces, pools, and areas where you want an unobstructed sky view.
Can a louvered pergola be fully opened like a retractable roof?
No. A louvered pergola's blades rotate to open (0°) but the roof structure always remains in place. When fully open, you get approximately 90% sunlight and airflow, but the frame and blades are still visible. A retractable roof physically folds or slides away, leaving the area completely open to the sky.
Which is more expensive, a louvered pergola or a retractable roof?
For similar sizes, a retractable roof system is typically 20–40% more expensive than a louvered pergola due to the more complex folding mechanism and PVC or polycarbonate roof panels. AluShed louvered pergolas start at ~$1,200 (3×3m), while PVC retractable roofs start at ~$1,800 for the same size.
Which system handles heavy rain better?
Both systems are fully waterproof when closed. A louvered pergola uses overlapping aluminum blades with integrated gutters. A retractable roof uses a taut PVC membrane or polycarbonate panels with a sloped drainage system. For heavy, wind-driven rain, a louvered pergola's rigid aluminum blades generally provide a more reliable seal than a flexible PVC roof.
Can I combine a louvered pergola with a retractable roof?
Yes. Many commercial projects combine both systems — for example, a louvered pergola over a dining patio and a retractable roof over a larger event space. Some manufacturers also offer hybrid systems, but for most projects, choosing one system based on your primary needs is more cost-effective.
Still Not Sure Which System Fits Your Project?
Send us your dimensions, photos, and location. We'll recommend the right system (louvered pergola, retractable roof, or a combination) with factory-direct pricing and free CAD drawings within 12 hours.
