A motorized louvered pergola — also called a bioclimatic pergola or smart pergola — is the fastest-growing outdoor shading product in the global market. Unlike fixed-roof pergolas, it lets you rotate aluminum louvers from 0° (fully open) to 135° (fully closed and waterproof) with a remote, app, or voice command. But with dozens of manufacturers and confusing spec sheets, choosing the right one for your project can be overwhelming.
In this guide, we break down everything you need to know — and compare AluShed's two core product lines: the AluS180 Light series for residential projects and the AluS220 Heavy series for commercial and large-span installations. By the end, you'll know exactly which one fits your budget, location, and project size.
📑 Table of Contents
1. What Is a Motorized Louvered Pergola?
A motorized louvered pergola is an aluminum-framed outdoor structure with a roof made of horizontally rotating louvers (blades). A tubular motor inside the beam drives a linkage system that rotates all louvers simultaneously. When fully open, you get 90% sunlight and full ventilation; when fully closed, the overlapping louvers create a 100% waterproof roof with an integrated gutter system that channels rainwater through the posts.
The term "bioclimatic" comes from the ability to micro-regulate the climate underneath — adjusting sunlight, airflow, and temperature without any glass or fabric. Add LED strips, infrared heaters, wind sensors, and zip screens, and you get a four-season outdoor room that works in rain, sun, or mild snow.
Why buyers choose louvered pergolas over fixed roofs or awnings:
- ✅ On-demand shade — rotate louvers to any angle, not just open/closed
- ✅ Waterproof when closed — integrated gutters, no fabric to sag or tear
- ✅ All-aluminum construction — 10+ year lifespan, zero rust, zero painting
- ✅ Smart home compatible — WiFi, app, Alexa/Google Home voice control
- ✅ Modular & scalable — combine multiple bays for unlimited width
2. AluShed AluS180 Light Series — Full Specs

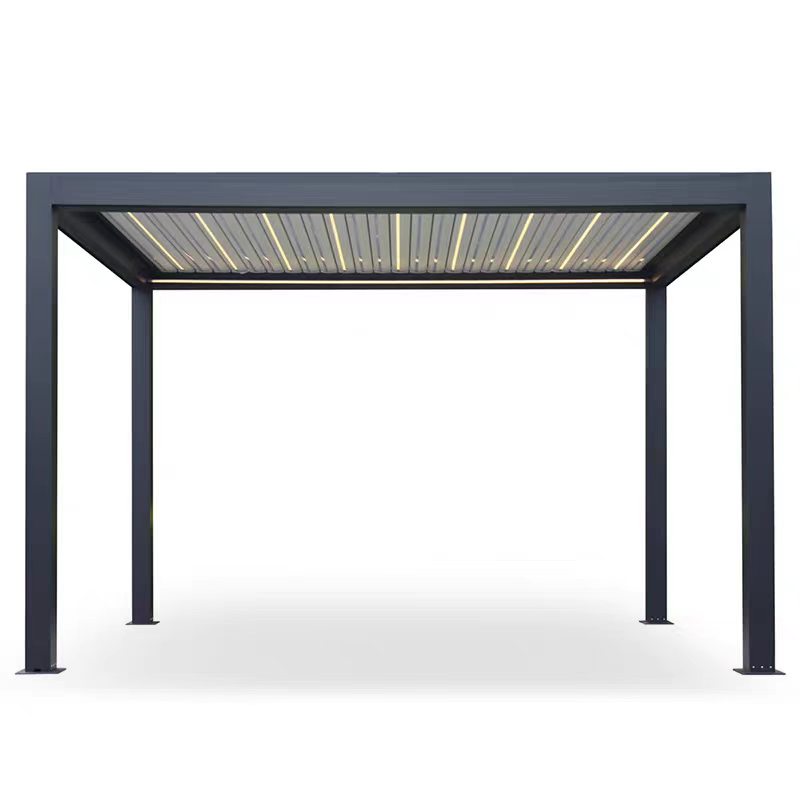

The AluS180 Light is AluShed's entry-level residential series, designed for homeowners, small restaurants, and boutique hotels. It uses a slimmer profile that keeps costs down while still delivering full waterproofing and motorized operation. The "180" refers to the 180mm-wide louver blade.

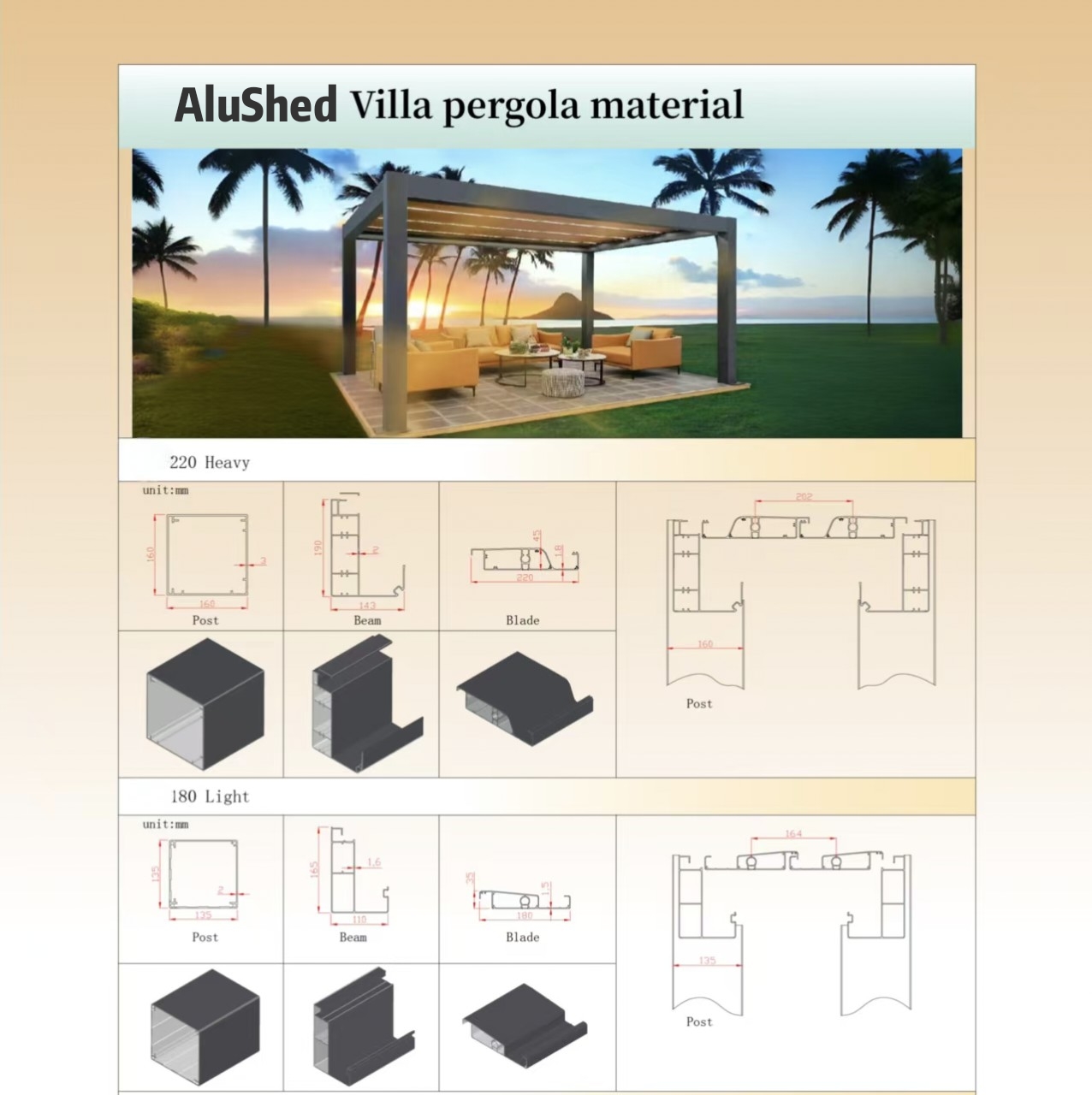

Aluminum Profile Specifications
| Component | Size (mm) | Wall Thickness |
|---|---|---|
| Post (Column) | 135 × 135 | 2.0 mm |
| Beam (Horizontal) | 110 × 165 | 1.6 mm |
| Louver Blade | 180 × 61 | 1.5 mm |
Key Parameters
- Material: 6063-T5 aerospace-grade aluminum, powder-coated (RAL colors available)
- Standard sizes: 3×3m, 3×4m, 4×3m, 4×4m
- Maximum single span: 4m between posts
- Wind resistance: Up to 100 km/h (62 mph) with louvers closed
- Motor: 24V DC silent tubular motor, 50W, RF remote + WiFi optional
- Louver rotation: 0° – 135° (open to fully closed & waterproof)
- Waterproofing: Integrated gutter in beams + downspout in posts
- Starting price: ~USD $1,200 (3×3m standard kit, factory-direct)
3. AluShed AluS220 Heavy Series — Full Specs

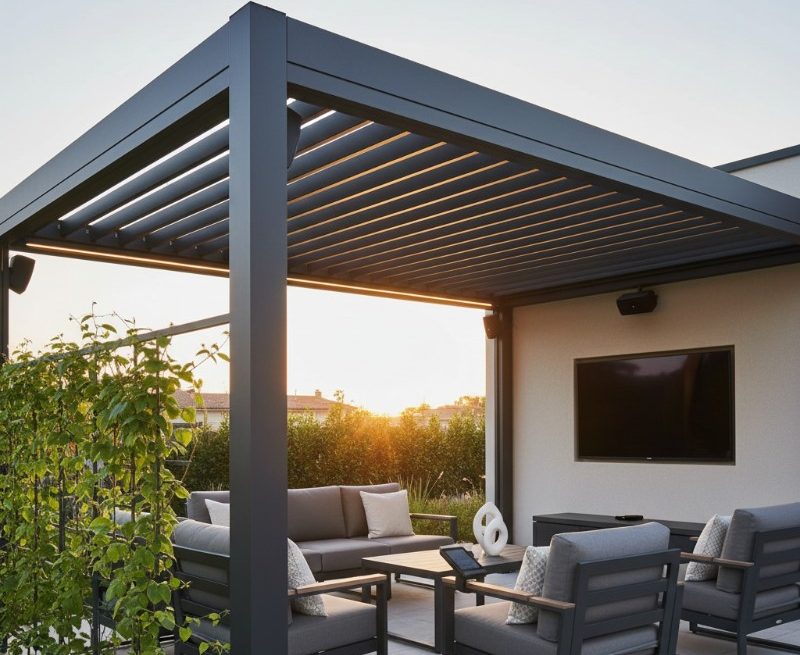

The AluS220 Heavy is AluShed's flagship commercial-grade series, engineered for large spans, high-wind zones, and heavy-use environments. The thicker profiles and wider 220mm louvers give it superior structural rigidity and a more substantial visual presence. It is the choice for hotels, restaurants, coastal properties, and large residential estates.
Aluminum Profile Specifications
| Component | Size (mm) | Wall Thickness |
|---|---|---|
| Post (Column) | 160 × 160 | 3.0 mm |
| Beam (Horizontal) | 143 × 190 | 2.0 mm |
| Louver Blade | 220 × 61 | 2.0 mm |
Key Parameters
- Material: 6063-T5 aerospace-grade aluminum, powder-coated (RAL colors available)
- Standard sizes: 3×3m, 4×3m, 4×4m, 5×4m, 6×4m
- Maximum single span: 6m between posts
- Wind resistance: Up to 120 km/h (75 mph) with louvers closed
- Motor: 24V DC silent tubular motor, 50W, RF remote + WiFi + smart home
- Louver rotation: 0° – 135° (open to fully closed & waterproof)
- Waterproofing: Dual-layer integrated gutter + reinforced downspout
- Starting price: ~USD $1,800 (3×3m standard kit, factory-direct)
4. AluS180 vs AluS220: Side-by-Side Comparison
| Specification | AluS180 Light | AluS220 Heavy |
|---|---|---|
| Post size | 135 × 135 mm | 160 × 160 mm |
| Post wall thickness | 2.0 mm | 3.0 mm |
| Beam size | 110 × 165 mm | 143 × 190 mm |
| Beam wall thickness | 1.6 mm | 2.0 mm |
| Louver width | 180 mm | 220 mm |
| Louver thickness | 1.5 mm | 2.0 mm |
| Max single span | 4 m | 6 m |
| Wind resistance | 100 km/h (62 mph) | 120 km/h (75 mph) |
| Standard sizes | 3×3 – 4×4 m | 3×3 – 6×4 m |
| Target market | Residential / light commercial | Commercial / large residential |
| Starting price (3×3m) | ~$1,200 | ~$1,800 |
| Certifications | CE, RoHS, ISO9001 | |
The quick rule of thumb: If your project is under 4m span and in a moderate-wind area, choose the AluS180 Light and save ~33%. If you need spans over 4m, are in a coastal/high-wind zone, or want a more substantial commercial look, step up to the AluS220 Heavy.
5. Five Key Factors to Consider Before Buying
① Span Size & Post Spacing
The single most important structural decision. The AluS180 maxes out at 4m between posts; the AluS220 goes to 6m. If you want an unobstructed 5m-wide patio without a middle post, you need the AluS220. Trying to stretch an AluS180 beyond 4m will cause beam deflection and louver misalignment over time.
② Wind Zone & Climate
Coastal areas, rooftops, and open plains have significantly higher wind loads. The AluS220's 3mm-thick posts and 120 km/h rating provide a 20% safety margin over the AluS180. If your location experiences regular gusts above 80 km/h, or if the pergola is mounted on a rooftop (where wind speeds are amplified), choose the Heavy series. For sheltered suburban backyards, the Light series is more than sufficient.
③ Motor & Smart Control Options
Both series use the same 24V DC silent tubular motor, so there's no difference in operation. Upgrade options are identical across both lines:
- RF remote (standard) — single-channel or multi-channel for multiple bays
- WiFi module — app control from anywhere, scheduling, voice via Alexa/Google Home
- Wind sensor — automatically closes louvers when wind exceeds threshold
- Rain sensor — automatically closes louvers when rain is detected
- Sun sensor — automatically adjusts louver angle based on sunlight
④ Color & Finish
Both series come in standard RAL powder-coat colors: RAL 7016 (anthracite gray), RAL 9005 (black), RAL 9016 (white), RAL 8019 (gray-brown). Custom RAL colors and wood-grain finishes are available for MOQ orders. Powder coating provides 10+ years of fade and corrosion resistance, even in coastal salt-air environments.
⑤ Accessories & Add-ons
A pergola is rarely just a roof. Plan your accessories upfront because some (like LED wiring) need to be installed during assembly:
- LED light strip — integrated into the front beam, dimmable, warm white or RGB
- Infrared heater — ceiling-mounted, extends usage into cooler months
- Zip screen blinds — side screens for wind, insect, and privacy control (see our zip screen page)
- Sliding glass doors — fully enclose the space for year-round use
- Gutter extension kit — for directing rainwater to a drainage system
6. Installation & Maintenance Tips
Foundation Requirements
Each post requires a concrete footing of at least 40×40×50cm (depth depends on local frost line). For the AluS220 Heavy, we recommend 50×50×60cm footings due to the higher wind load. Posts can be surface-mounted with steel base plates or embedded into concrete for a cleaner look. Always check local building codes — some regions require permits for structures over a certain size.
Installation Timeline
- AluS180 (3×3m to 4×4m): 4–6 hours for 2 experienced workers
- AluS220 (4×4m to 6×4m): 6–10 hours for 2–3 workers
- Multi-bay commercial: 1–3 days depending on total size
Every AluShed order includes a printed installation manual, CAD assembly drawings, and access to video guides. Our technical team is available via WhatsApp for support during installation.
Maintenance (Almost Zero)
One of the biggest advantages of aluminum louvered pergolas is minimal maintenance:
- ✅ Annually: Hose down the frame and louvers with water; wipe with mild soap if needed
- ✅ Annually: Check and tighten bolt connections if any loosening is noticed
- ✅ Every 2–3 years: Lubricate the motor linkage and louver pivot points with silicone spray
- ❌ No painting, no rust treatment, no fabric replacement — ever
7. Frequently Asked Questions
What is the difference between AluShed AluS180 and AluS220?
The AluS180 Light series uses 135×135mm posts (2mm thick), 110×165mm beams (1.6mm), and 180mm louvers — ideal for residential patios up to 4×4m. The AluS220 Heavy series uses 160×160mm posts (3mm thick), 143×190mm beams (2mm), and 220mm louvers — built for commercial projects, large spans up to 6×4m, and high-wind coastal areas.
How much does a motorized louvered pergola cost?
AluShed AluS180 Light starts at approximately USD $1,200 for a 3×3m standard kit. The AluS220 Heavy starts at approximately USD $1,800 for the same size. Custom sizes, LED lighting, wind sensors, and side screens add $200–$800 depending on configuration. Factory-direct pricing is typically 30–50% lower than European brands.
Can a louvered pergola withstand heavy rain and wind?
Yes. AluShed pergolas feature integrated gutter systems in the beams and posts that channel rainwater away. The AluS220 Heavy is rated for wind speeds up to 120 km/h (75 mph) with louvers closed. The AluS180 Light is rated for up to 100 km/h (62 mph). Optional wind sensors automatically close louvers when wind exceeds safe thresholds.
What is the maximum span for a louvered pergola?
The AluS180 Light supports a maximum single span of 4 meters between posts, with standard sizes from 3×3m to 4×4m. The AluS220 Heavy supports spans up to 6 meters, with standard sizes from 3×3m to 6×4m. Both series can be combined in modular multi-bay configurations for unlimited total width.
How long does it take to install a louvered pergola?
A standard 3×3m or 4×3m AluShed pergola can be installed by 2 experienced workers in 4–6 hours, including foundation work. Larger commercial installations typically take 1–2 days. Full installation manuals, CAD drawings, and video guides are provided with every order.
Are AluShed pergolas waterproof?
Yes, when the louvers are fully closed (135°), the overlapping blade design creates a 100% waterproof seal. An integrated gutter system inside the beams collects rainwater and channels it through the hollow posts to the ground. No fabric, no seams, no leaks.
